M12 IP67 IP68 Waterproof Connector Male Female 3-17 Pin Automotive

Name: M12 IP67 IP68 Waterproof Connector Male Female 317 Pin Automotive
Brand: Rigoal
Price: 3.90 USD

Wholesale M12 IP67 IP68 Waterproof Connector Male Female 3-17 Pin Automotive from china suppliers

Place of Origin : Guangdong, China

Brand Name : Rigoal

Model Number : M12

MOQ : 10

Price : $3.90-5.90

Rated current : 1.5A-4A

Rated voltage : 30V-250V

Operating Temperature : -40°C~85°C

Degree of protection : IP67/IP68

Connector locking system : Solder/Screw/Pcb/Wire

Mechanical operation : >500 mating cycles

Contact resistance : ≤10mΩ

Material of connector : CuZn,TPU

Contact plating : Au(gold plating)

Material of housing : Brass/Zinc diecasting nickel plated

Pin count : 3 4 5 6 8 12 17 pin

Code type : A B D X code

Gender : Male/Female

Panel mount type : Solder/PCB/Wire

Interface standard : A B C D X T S L M T Y coded

Contact Now

Technical Data

Place of Origin	China
	Guangdong
Brand	Rigoal
Pin	3 4 5 6 8 12 17 pin
Code	A B D X code
Gender	Male/Female
Rated current	1.5A for 12 17 pin/2A for 8 pin/4A for 3 4 5 pin
Rated voltage	30V for 8 12 17 pin/60V for 5 pin/250V for 3 4 pin
Operating Temperature	-40°C~85°C
Degree of protection	IP67/IP68
Connector locking system	Solder/Screw/Pcb/Wire
Mechanical operation	>500 mating cycles
Contact resistance	≤10mΩ
Material of connector	CuZn,TPU
Contact plating	Au(gold plating)
Material of housing	Brass/Zinc diecasting nickel plated
Custom	Acceptable

Product introduction

OEM/ODM

IP67/IP68

M12 Panel Mount Connector

We have three main types:

Solder panel mount

PCB panel mount

Panel mount with wire

M12 IP67 IP68 Waterproof Connector Male Female 3-17 Pin Automotive

Panel mounting product

classification

Select different types of panels according to different use scenarios

Some ways to handle the tail of panel wire

If you have custom requirement,pls feel free to contact us

Panel mount

structure

We strictly control every detail

and provide you with high-quality products

Panel installation

Choose front lock or rear lock according to your needs

Nut size

Customize the size of the panel nut according to your needs

Interface standard

and number of cores

We can support A B C D X T S L M T Y coded

and 3 4 5 8 12 14 17 core count customization

More connectors

We continue to develop new products to meet your multiple needs

Packing&Shipping

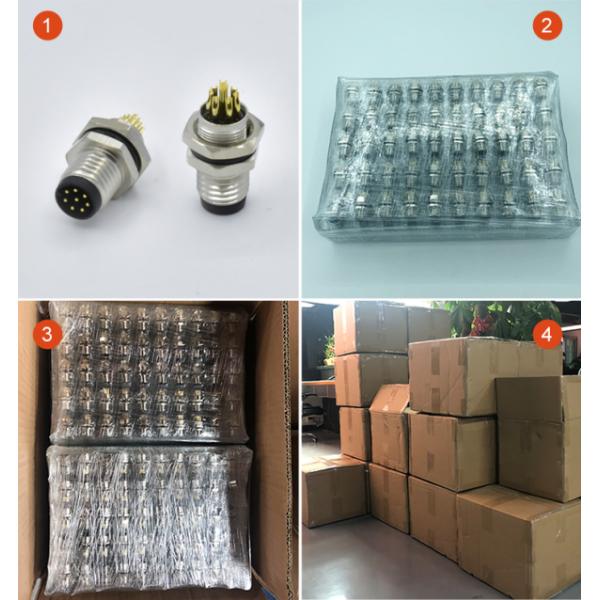

Packing

1.Panel without wire:Put dozens of pieces on a tray,wrap the tray tightly with protective film.

2.Panel with wire:Put dozens of pieces in a bag.

3.Put the trays or the bags in the carton.

4.According to customer needs

Shipping

We will choose different transportation modes according to customers' needs,which more convenient ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.

Company Profile

Certifications

FAQ

Q1: Are you a factory? A: Yes, we are the professional manufacturer of connectors and precision mold since 2013.

Q2: How to buy M12 panel mount from your company?

A: Please contact us and let us know your clear requirement,or we will share you our catalog to choose the best one.If you need customized products, please provide us with drawings or our engineering department will assist you to complete the drawings.

Q3: How can you guarantee quality?

A: Always a pre-production sample before mass production;Always final inspection before
shipment;

Q4: How about the payment terms? A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q5: How long is the delivery time? A: Often within two weeks, pls contact us for details.
